23 FT Sport Fisher (1525)

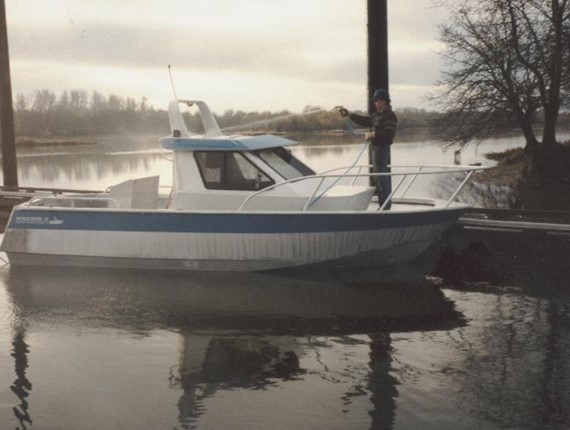

This design (plan) of an aluminum 23 FT sport fishing boat is based on our 23 FT Orca (hull 537). It is available in outboar, water jet, and I/O configuration.

At 4,445 lbs. displacement with 100 gallons of fuel, at 250 HP, the boats projected speed is 42 knots.

Download drawing in PDF
  • Length Overall of Boat 23' 2" / 7.06 m LOA
  • Beam of Boat 8' 4" / 2.54 m Beam
  • Weight of Boat 3,600 lbs / 1,633 kg Weight
  • Price of Boat $1,820* Price

*The above price is for the construction plans and a onetime use of the CAD cutting files.

Hull 1525

Weight in table above is the weight of the uncut aluminum sheet and plate.

It features a center line fish hold and two (2) fifty (50) gallon fuel tanks.
