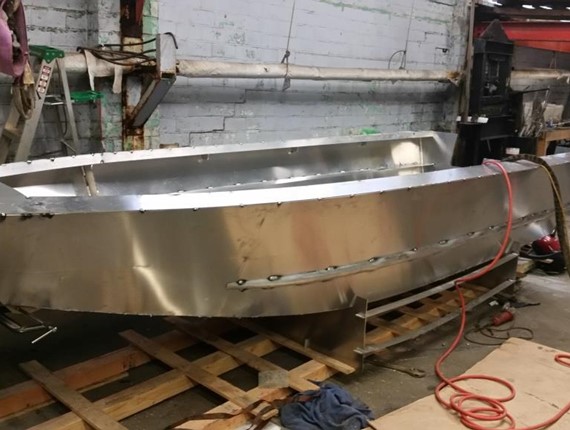

16 FT Outback 2.jpg

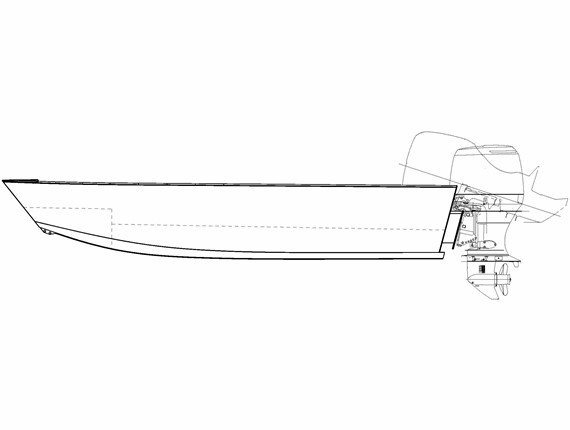

16 FT Outback 2.jpg 16 FT Outback 3.jpg 16 FT Outback Sketch for Website.jpg

This aluminum boat design (plan) has a pram bow designed for narrow beam operations in rivers, the boat features a 6 degree deadrise bottom for minimum draft.

At 1,236 lbs. displacement, at 50 HP, the boats projected speed is 33 knots.

Download drawing in PDF
  • Length Overall of Boat 16' 0" / 4.88 m LOA
  • Beam of Boat 6' 3" / 19 m Beam
  • Weight of Boat 969 lbs / 440 kg Weight
  • Price of Boat $840* Price

*The above price is for the construction plans and a onetime use of the CAD cutting files.

Hull 1647

Is available with or without a tunnel for OB jet.

Weight in table above is the weight of the uncut aluminum sheet and plate.

Max HP (remote steering):  95

Max HP, Tiller: 50

Max Weight Capacity: 1,441 LBS

Max Person Capacity: 891 LBS

Max Number of Persons:   7 or number of seated positions intended for use while under way
