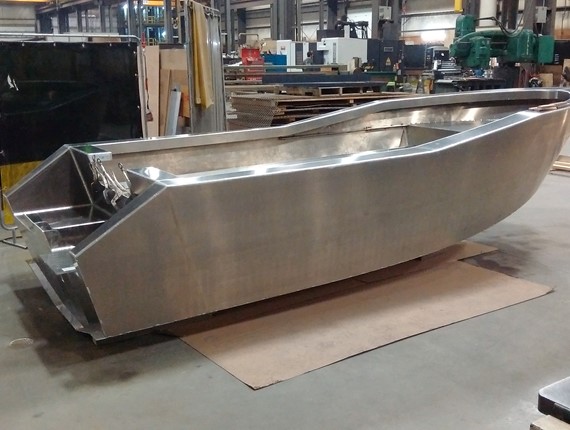

16 FT ORCA Photo 1.jpg

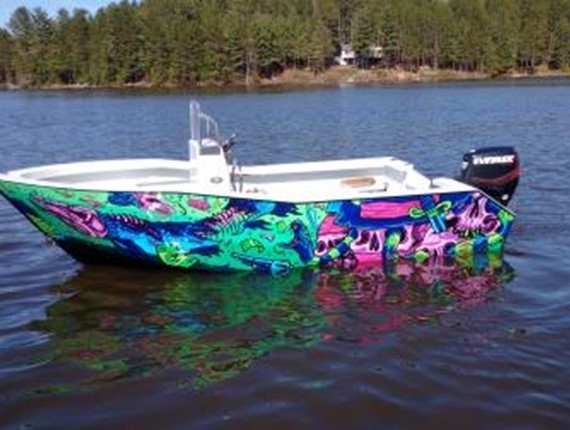

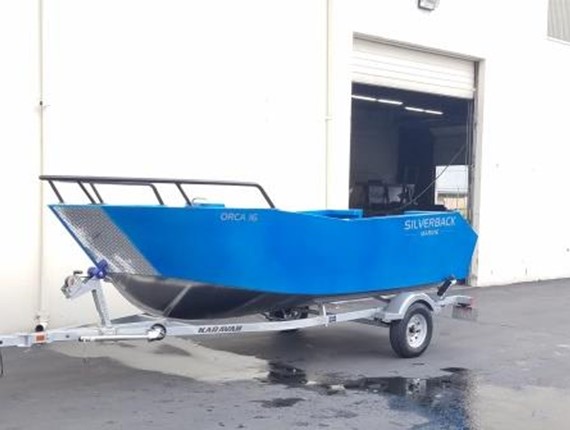

16 FT ORCA Photo 1.jpg 1327 (Stainless Steel Tech).jpg 16 FT ORCA 1327 comp.jpg

This design (plan) is a high bow version of our aluminum hull 1020 (14 FT Orca), which is popular in Australian waters.

At 2,029 lbs. vessel attained 37 MPH in rough water with a 90 HP Etech.

Download drawing in PDF
  • Length Overall of Boat 16' 2" / 4.93 m LOA
  • Beam of Boat 6' 8" / 2.03 m Beam
  • Weight of Boat 1,473 lbs / 668 kg Weight
  • Price of Boat $875* Price

*The above price is for the construction plans and a onetime use of the CAD cutting files.

Hull 1327

Weight in table above is the weight of the uncut aluminum sheet and plate.

Max HP (remote steering):  125

Max HP, Tiller: 75

Max Weight Capacity: 1,858 LBS

Console is not included in basic design, but is available as an option.
