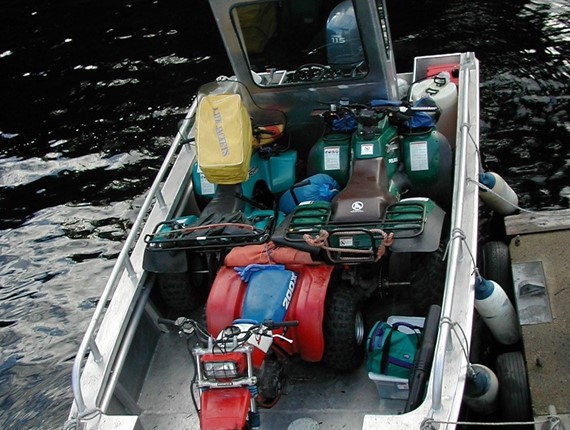

18 FT Landing Craft (1520)

18 FT LC.jpg
18 FT LC.jpg

The aluminum boat design (plan) for our 18 FT Landing Craft features a door width of 49 inches / 1,245 mm. This design is USGC compliant.

At 2,880 lbs. displacement with 38 gallons of fuel, at 130 HP, the boats projected speed is 36 knots.



Download drawing in PDF
  • Length Overall of Boat 18' 6" / 5.7 m LOA
  • Beam of Boat 7' 3" / 2.2 m Beam
  • Weight of Boat 2,088 lbs / 947 kg Weight
  • Price of Boat $1,050* Price

*The above price is for the construction plans and a onetime use of the CAD cutting files.

Hull 1520

Weight in table above is the weight of the uncut aluminum sheet and plate.

Max HP (remote steering):  175

Max HP, Tiller: 80

Max Weight Capacity: 1,481 LBS

Max Person Capacity: 719 LBS

Max Number of Persons:   5 or number of seated positions intended for use while under way
