36 FT Patrol Boat (1354)

hull1354.jpg 11 x 4 M patrol 1.JPG 11 x 4 M patrol 2.JPG

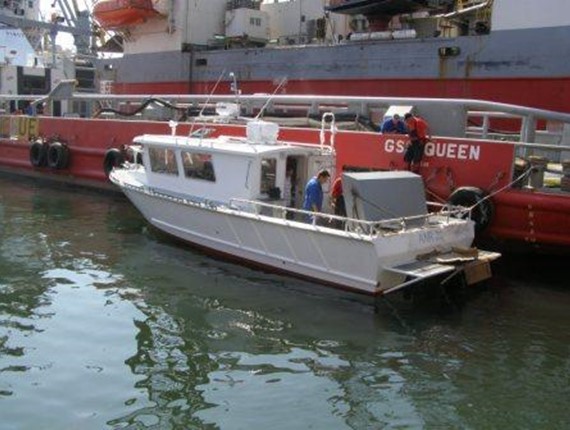

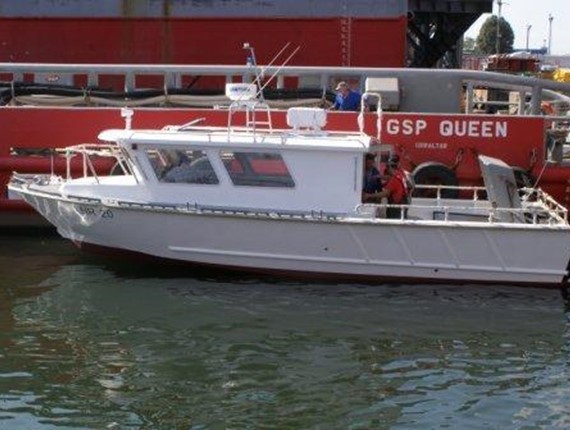

The aluminum boat design (plan) for our 36 FT Patrol Boat sports a 19 degree deadrise and has twin Cummins QSB5.9, BRAVO II I/O, 230 HP.

At 17,496 lbs. displacement with 370 gallons of fuel, at (2) 230 HP, the boats projected speed is 28 knots.

Download drawing in PDF
  • Length Overall of Boat 35' 6" / 10.82 m LOA
  • Beam of Boat 13' 1" / 3.99 m Beam
  • Weight of Boat 9,840 lbs / 4,463 kg Weight
  • Price of Boat $7,140* Price

*The above price is for the construction plans and a onetime use of the CAD cutting files.

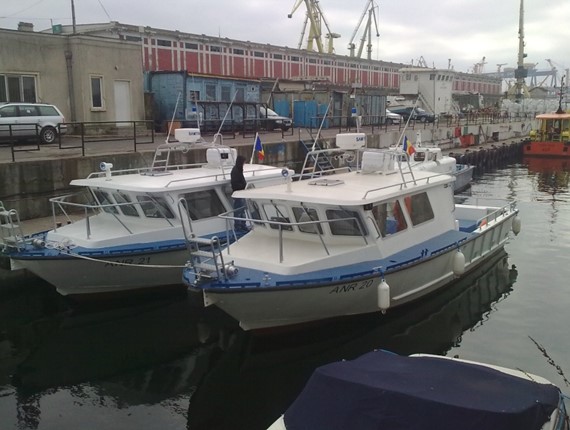

Hull 1354

Weight in table above is the weight of the uncut aluminum sheet and plate.
