28 FT Wide Door Landing Craft (1313)

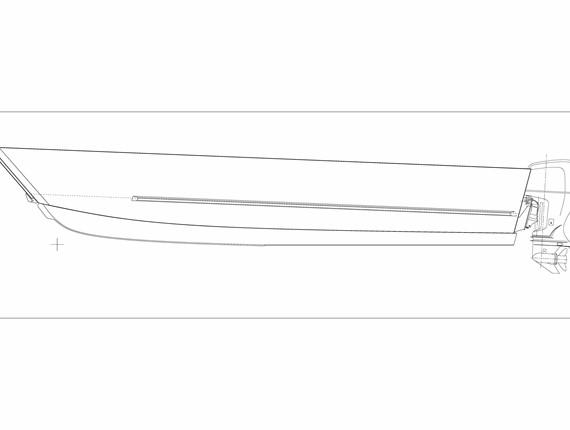

28 FT Wide Door LC Sketch.jpg
28 FT Wide Door LC Sketch.jpg

This aluminum boat design (plan) for a 28 foot landing craft features a wide opening door width of 79 inches (2007 mm).

At 5,679 lbs displacement with 120 gallons of fuel, at 225 HP, the boats projected speed is 34 knots.

Download drawing in PDF
  • Length Overall of Boat 28 FT / 8.5 m LOA
  • Beam of Boat 9.5 FT / 2.9 m Beam
  • Weight of Boat 4549 LBS / 2063 kg Weight
  • Price of Boat $3,570* Price

*The above price is for the construction plans and a onetime use of the CAD cutting files.

Hull 1313

Weight in the table above is the weight of the uncut aluminum sheet and plate.
