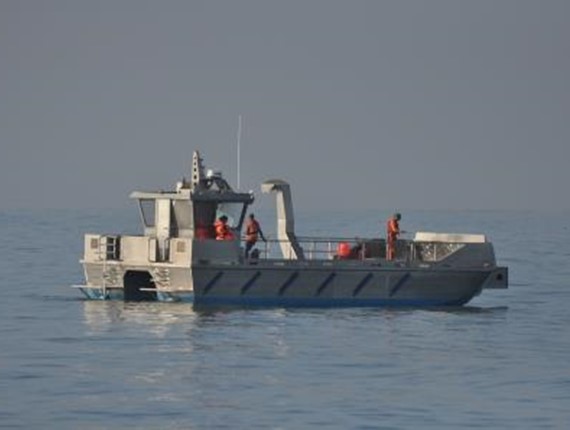

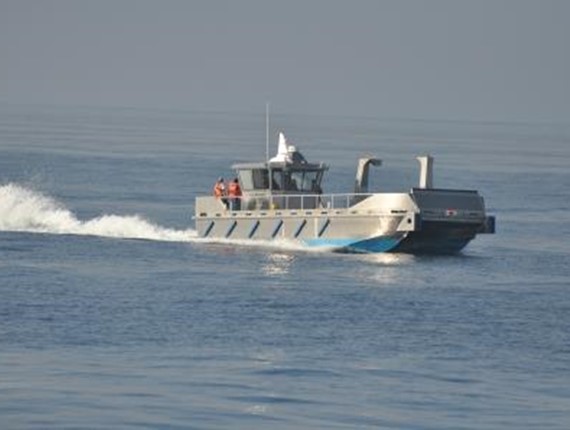

This design (plan) is a 45 FT aluminum catamaran.

At 19,026 lbs. displacement with 440 gallons of fuel, at (2) 230 HP, the boats projected speed is 28 knots.

Download drawing in PDF
  • Length Overall of Boat 44' 7" / 13.59 m LOA
  • Beam of Boat 17' 7" / 5.36 m Beam
  • Weight of Boat 16,100 lbs / 7,303 kg Weight
  • Price of Boat $15,750* Price

*The above price is for the construction plans and a onetime use of the CAD cutting files.

Hull 1740.

Weight in table above is the weight of the uncut aluminum sheet and plate.

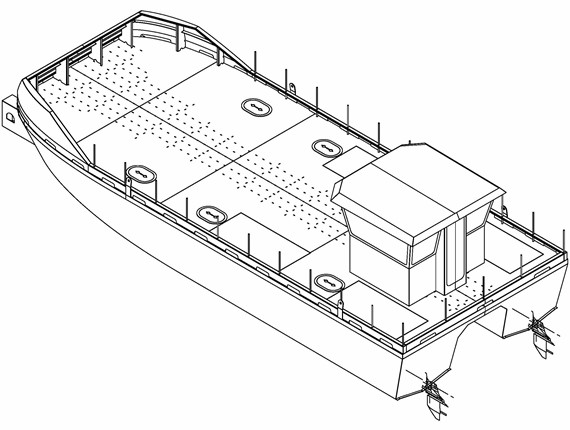

Drawing in photo is configured as an oyster boat for Mexican waters.
