32 FT Passenger Catamaran (1844)

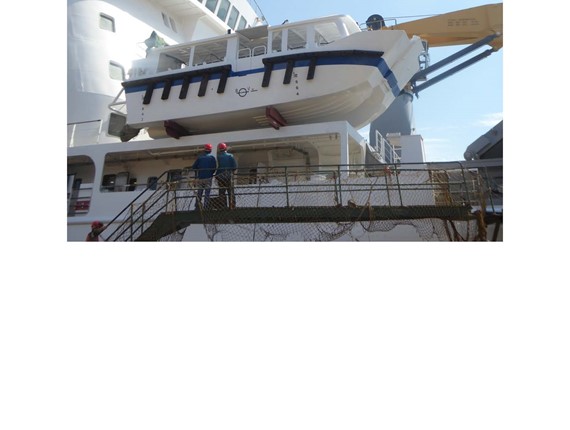

Cat loaded on ship.jpg
Cat loaded on ship.jpg 32 FT CAT Sketch Website.jpg

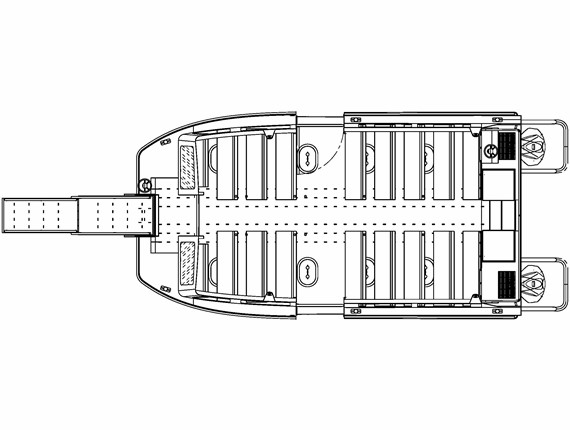

This design (plan) is a 32 FT aluminum catamaran designed to carry 70 passengers for ship to shore shuttle. Features a manually folding bow ramp and side doors.

At 16,789 lbs. displacement with 150 gallons of fuel, at (2) 225 HP, the boats projected speed is 36 knots.

Download drawing in PDF
  • Length Overall of Boat 32' 8" / 9.96 m LOA
  • Beam of Boat 17' 6" / 5.33 m Beam
  • Weight of Boat 17,500 lbs / 7938 kg Weight
  • Price of Boat $10,500* Price

*The above price is for the construction plans and a onetime use of the CAD cutting files.

Hull 1844

Weight in table above is the weight of the uncut aluminum sheet and plate.
