19 FT Low Profile Catamaran (1845)

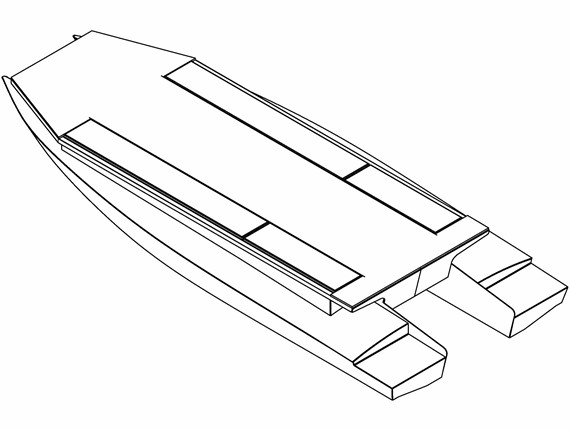

19 FT Wing CAT Sketch Website.jpg
19 FT Wing CAT Sketch Website.jpg

This design (plan) is a 19 FT aluminum catamaran.

At 2,684 lbs. displacement with a portable fuel tank, at 90 HP, the boats projected speed is 30 knots.

Download drawing in PDF
  • Length Overall of Boat 19' 5" / 5.92 m LOA
  • Beam of Boat 7' 10" / 2.4 m Beam
  • Weight of Boat 1,642 lbs / 745 kg Weight
  • Price of Boat $2,100* Price

*The above price is for the construction plans and a onetime use of the CAD cutting files.

Hull 1845

Weight in table above is the weight of the uncut aluminum sheet and plate.

Optional console and locker box available upon request.
